| Brand Name : | TARGET |
| Model Number : | TG-15-50 |
| Certification : | CE,ISO |
| Price : | $30000---50000 |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 10000set/month |
| Delivery Time : | 10 days after confirm order |
Specification:

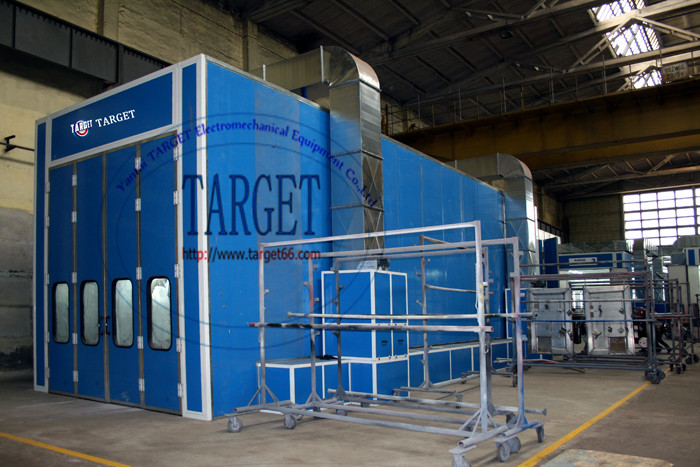

| Spray Booth Truck Diesel Burner TG-18-50 | |
| Inside dimension | 18000×5000×5000mm(L×W×H) |
| Outside dimension | 18144×6896×5600mm(L×W×H) |
| Wall panel | Profiled bar beams in the roof to strengthen the room body; wall panel thickness:70mm, width:1150mm, tongue and groove structure, with . EPS insulation inside, colour: white. |
| Doors | Main door: Folding door, 4 folds, 4000×4500mm(W×H), with galvanized steel frame, with polystyrene(EPS) inside, color: blue Escape door : 2 units, 800x2000mm(W×H) /pc, colour: white. |
| Basement | Without basement, 2 rows of pits in the ground for exhaust air, dimension of each pit is 16100×760mm(L×W), with galvanized grilles made by twisted steel and flat bar above. |
| Intake air system | 6×5.5KW double-intake centrifugal fans for intake air, model YDW4.5S, total air capacity: 93000m3/h |
| Exhaust air system | 3×11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-630H, Total air capacity: 84000m3/h. |
| Damper actuates | Pneumatic damper actuates from spraying to baking cycle, manual dampers for exhaust air |
| Heating system | 3 units RIELLO RG5S diesel burners, stainless steel heat exchanger, Max. heating productivity: 780000 Kcal/h, Max.work temperature: 80℃ |
| Filter system | Pre-filter, ceiling filter, exhaust fibreglass filter, activated carbon filter. |
| Filtering area | 75M2 |
| Lighting system | Ceiling Lights: 24Units×4Pcs=96Pcs×36W, Side Lights: 28Units×4Pcs=112Pcs×36W, with electronic ballasts, up and down interleaving installation. |
| Control system | Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop,ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. Exhaust reduction voltage motor start |
| Total power | 75.5KW |
|
|
