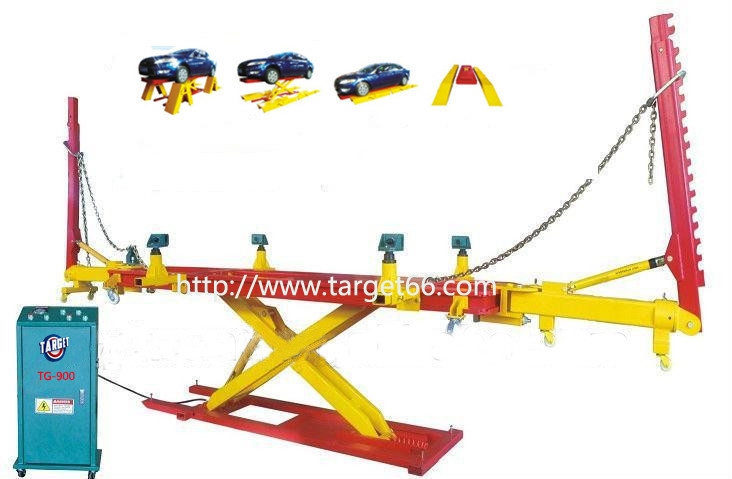

Specifications:

Bench length: ------------------------------4200mm

Bench width: --------------------------------950mm

Working height: ----------------------------260--1600mm

Post Max. Pulling tension: ----------------95KN (10tons)

Rated voltage: ------------------------------220/380V

Post working range: -----------------------360°

Max. Lifting weight: -----------------------3500kg

Total weight: -------------------------------1800kg

Features:

1.the bench welded with cold high alloy rectangular tube, full plate and have high intensity.

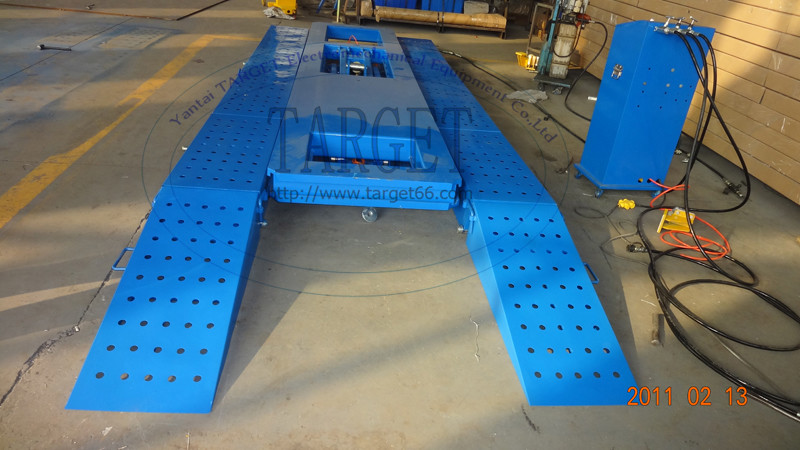

2.the vertical lifting bench can lift vertically, and can be used as a scissor lift. the working range from 260mm to 1600mm high.

3.Frame basement can be folded up, four base wheel can be movable., when the vehicle is fixed on the platform, move them together to a specific position according to the maintenance need.

4. Unique ramps make the vehicle go up easily and quickly. the ramps are also could be used as support base for car wheels, which help to fix the clamps during repair.

5. Two flexible moving pulling towers can be fixed firmly and stretched at varied direction. the imported hydraulic system with strong power and long working life.

6. All the clamps and tools are through forging, integral modulation and high frequency quenching heat treating, which have long lifetime and can repair almost any distortion.

7. Main clamp jaw with patient can fix auto body, main clamp and cross-beam together with one screw, Scientific design, firm fixing and quick operation improve working efficiency greatly.

8. the most advanced measuring system, no interrupted ponit, operated conveniently.

9.Perfect after sales service guarantees customers' satisfaction.

Yantai TARGET Electromechanical Equipment Co.,Ltd

1, Our  product
car /Truck / Truck cab straightening bench ,
car / truck spray booth , prep station
2. Why choose TARGET
Professional manufacturer ，experienced design team .
More than 15 years sale team
Advanced production equipment
Best after sale service
All the products have 1 year warranty
3. Delivery time
10 days after receive payment
4. Payment term
T/T , 30% deposit, 70% balance before delivery
5. TARGET IN China
Website:  www.target66.com
Skype: anna1983_export
Phone: 86-535-6393676
Contact person: Ms.Anna Pang

 Company Profile:
Yantai TARGET Electromechanical Equipment Co.,Ltd is located in Yantai city which is in Chinese eastern、the top ten charming cities of China,And near from the well-known International Import and Export container port : Qingdao.Nice location、Convenient transportation and Beautiful environment attracted a lot of foreign investors , It become thepreferred and intensive city for domestic and foreign enterprises to Create the production base.
    Since the foundation of company , TARGET provide all users with high quality Auto Repair Equipment and SprayPainting Equipment . According to the business concept :“Speciality,Integrity,Innovation and Quality-oriented ideas”,TARGET had assembled a strong team, It has over 10 years experience in management and after-sales service.All the products are exported to the United States, Spain, Russia, Australia, South Africa and so on.
     TARGET promise to supply customers with the satisfaction products and insure the timely delivery
     TARGET focus on : Safety,  Energy Conservation,Environmental Protection,Practical,Economic and provide super quality equipments.
     TARGET have professional engineers to provide market service and maintenance solutions.
     We are sincerely looking forward to cooperating with you !
