| Brand Name : | TARGET |
| Model Number : | TG-60B |
| Certification : | CE,ISO |
| Price : | US$ 6000--8000 |
| Delivery Time : | 7 working days after confirm order |

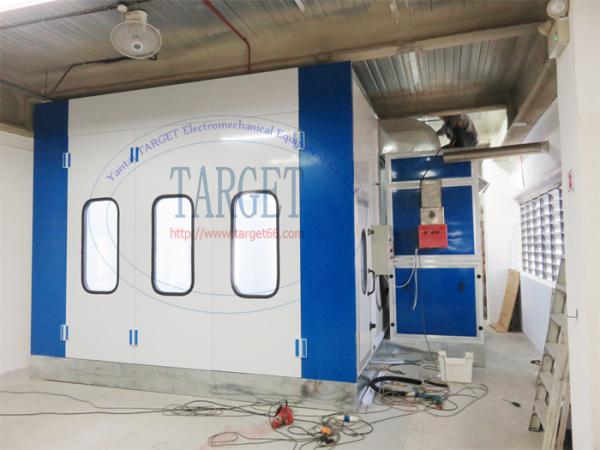

Factory Photoes:
Transporation for export Photoes:
Specifications:

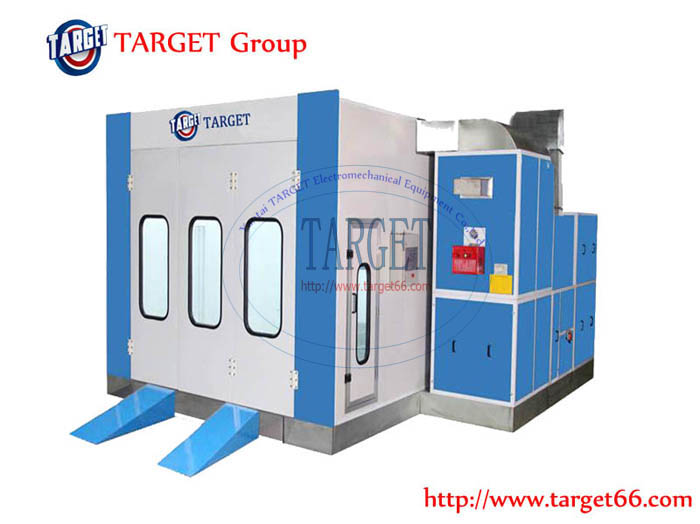

| Spray Booth Diesel Burner TG-60B | |||||||
| Inside dimension | 6900*4000*2800 (LxWxH) | Front door(mm) | 3000*2700 mm(W×H) | ||||
| Outside dimension | 7000*5400*3450 (LxWxH) | Total Power(Kw) | 16 Kw , Noise < 80db | ||||
| Cabin System | Wallboard | EPS (epispastics polystyrene) colorful steel skin panel,EPS foam Density is 16kg/m³,50mm thick,steel 0.5mm thick,compound construction, anti-flame and heat-insulation, galvanized steel roof panel. | |||||
| Basement | 350mm depth,Galvanized steel sheet and square steel pipe assembling,2 rows of grid plates made by flat bar and round steel,3 rows of diamond plates, galvanized.2 ramps, external setting, 750 x 2000 mm ( W * L )/pc | ||||||
| Air Circulation System | Intake Fan | Blower Capacity: 25000m³/h | Exhaust Fan | Blower Capacity: 15000m³/h | |||
| Power: 4kw/pc | Power: 5.5kw/pc | ||||||
| Quantity: 2 pcs | Quantity: 1 pc | ||||||
| Model: Double-intake centrifugal fan | Model: Double-intake centrifugal fan | ||||||
| Air Volume: 25000m³/h,Air flow speed in the cabin:0.25m/s | |||||||
| Heating system | Burner | Italy Riello G20 Diesel Burner, 200000Kcal/h.SUS304Stainless steel heat exchanger ,argon arc welding. | |||||
| Heat energy | Max Temp:80.C, Heating Time: 4-5min(20-60°C), Fuel Consumption: 4-5kg/vehicle | ||||||
| Filter system | Dual-filtering structure | Primary filter :Can Capture Granules Larger than 10μm | |||||
| Ceiling filter :600g high efficiency filter,can Capture Granules Bigger than 4μm | |||||||
| Floor filter: fiberglass filter,exhaust activated carbon filter, Filtering rate>95% | |||||||
| Lighting system | Ceiling lights | 8Units×4Pcs=32Pcs×36W 900LUX,with anti-explosion design . | |||||
| Side lights | 6Units×4Pcs=24Pcs×30W 900LUX,with anti-explosion design . | ||||||
| Control system | Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start. | ||||||
| Environmental System | Multi-Layer Fiberglasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards | ||||||
TARGET is your best choose, We supply oversea service .
Hope to get your inquiry soon !
|
