    Big bus/truck spray booth /truck painting booth/big bus baking oven

    Ask Lasest Price
    Brand Name : TARGET
    Model Number : TG-15-50
    Certification : CCC, CE , ISO
    Price : US$ 20000---30000
    Supply Ability : 1000 set/Month
    • Product Details
    • Company Profile

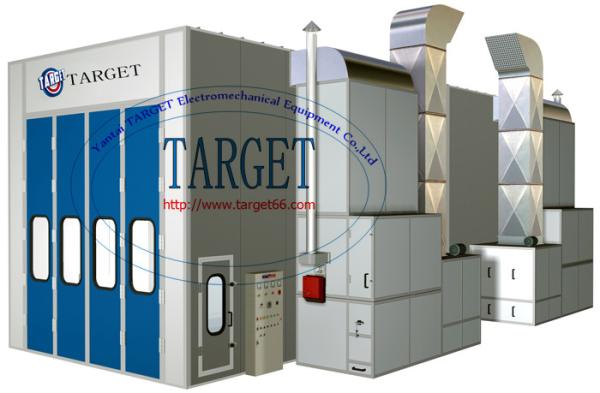

    Big bus/truck spray booth /truck painting booth/big bus baking oven

    Spray Booth 15m Truck Diesel Burner TG-15-50
    Inside dimension15000*5000*5000mm(L*W*H)
    Outside dimension15144*6896*5600mm(L*W*H)
    Wall panelProfiled bar beams in the roof to strengthen the room body, wall panel thickness:70mm, width:1150mm, tongue and groove interlock structure,with Polystyrene(EPS) insulation inside, colour:white.
    DoorsFolding door, 4 -folds, 4000×4500 mm(W*H), galvanized steel cover frame, with polystyrene(EPS) inside, colour:blue. Escape door :2 units , 800×2000mm(W*H)/pc, colour: white.
    BasementWithout basement. 2 rows of pits in the ground for exhaust air, dimension of each pit is 12650x760mm(LxW), with galvanized grilles made by twisted steel and flat bar above.
    Intake air system4x7.5KW double-intake centrifugal fans for intake air, model is YDW4.5M, Total air capacity is 42000M³/h.
    Exhaust air system2x11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, Model TAE-710H, total air capacity is 36000 M³/h.
    Damper actuatesEquip pneumatic dampers actuates from spraying to baking cycle, manual dampers for exhaust air.
    Heating system2units RIELLO RG5S diesel burners, stainless steel heat exchanger. Max. heating productivity:520000Kcal/h. Max. working temperature :80℃.
    Filter systemPre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter.
    Filtering area44M2
    Lighting systemCeiling lights:18units *4 pcs=72pcs * 36W, Side lights: :22units * 4pcs=88pcs* 36W, up and down interleaving installation.with electronic ballasts.
    Control systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller, pressure gauge, exhaust reduction voltage motor start.
    Total power63Kw
